配备ATC工具主轴＋下刀塔，对向双主轴

• 工具主轴转数12,000min-1 (op.20,000min-1)
• 主轴端距1,000mm
• Y轴行程210mm(±105mm)
• 工具轴回转角度190° (±95°)
• ATC工具配备36把刀具 (op. 48,72)
• 对向双主轴，左右同时加工，缩短加工时间
• 宽大,低重心设计的高刚性水平床身，采用垂直动柱构造

紧凑型6英寸ATC型复合加工机

• 占地面积4,350mm×2,795mm
• 配备电主轴
• 可配置6″～8″卡盘配備ATC工具主軸＋下刀塔，對向雙主軸

• 工具主軸轉數12,000min-1 (op.20,000min-1)
• 主軸端距1,000mm
• Y軸行程210mm(±105mm)
• 工具軸回轉角度190° (±95°)
• ATC工具配備36把刀具 (op. 48,72)
• 對向雙主軸，左右同時加工，縮短加工時間
• 寬大,低重心設計的高剛性水準床身，採用垂直動柱構造

緊湊型6英寸ATC型複合加工機

• 占地面積4,350mm×2,795mm
• 配備電主軸

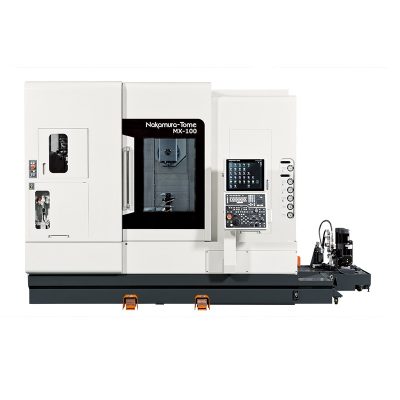

• 可配置6″～8″卡盤Tool Spindle, ATC and Lower-turret, CNC Multitasking Machine with Opposed Twin-spindles.

• Maximum Tool spindle speed 12,000min-1 (op. 20,000min-1).
• Distance between spindles 1,000mm.
• Y-axis stroke 210mm (±105mm).
• B-axis swiveling range 190° (±95°).
• Number of tools for ATC magazine 36 pcs. (op. 48 ,72).
• twin spindle , Save the cycle time by Simultaneous operation with Upper and Lower tools.
• Faster cycle times thanks to simultaneous machining with upper and lower tools on L/R opposed twin-spindles.
• The slides, having a vertical column structure, are mounted on a high rigidity horizontal machine bed with low gravity design.

Compact Multitasking Machine with ATC

• Floor space 4,350mm×2,795mm.
• Equipped with Built-in Spindles.
• Can be equipped with 6 ~ 8-inch chucks.
